A cold bending production line equipment performance, space edge rib

1.1 material: Q235, Q345 steel sheet

1.2 the thickness of the material: 2-3 mm

1.3 material width: less than or equal to 400 mm

Coil diameter 1.4: Ф 508 mm

Coil diameter 1.5: Ф 1500 mm or less

1.6 single volume weight: 5000 kg/roll or less

1.7 production line length: about 56 m

1.8 production line total load power: about 100 KW

Second, the space of edge rib production line:

Feeding and feeding to uncoiling, leveling is feeding the (-) cutting - guide is to die cutting, cutting, molding and straightening to discharging speed, automatic unloading to pallet, packaging

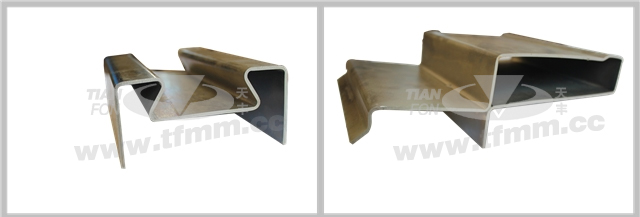

Edge rib steel in space
