TF plate cold bending unit:
1 sheet thickness: 1-2.0 mm
2 plate width: 245 § 650 ㎜ or less or less
3 production line speed: 0-20 m/min (adjustable)
Production covers an area of 4: about 28 meters wide X 3 meters long
About 38 kw installed gross capacity: 5
Voltage: 380 v / 380 v, 50 hz
7 equipment
Equipment is mainly composed of feeding machine, guide rack, forming parts, set foot cut off part, receiving station, electric control cabinet and other parts
The anode plate machine model parameter table
Num | Model | Feed width | Thickness | Effective width | Plate type |
1 | TF480 | 645 | 1.0-1.5 | 480 |
|
2 | TF480A | 625 | 1.0-1.5 | 480 |
|
3 | TFZT24 | 584 | 1.0-1.5 | 480 |
|
4 | TF3256 | 627 | 1.2-1.6 | 457 |
|
5 | TF818 | 1000 | 1.0-3.0 | 784 |
|
6 | TFCSV | 608 | 1.0-1.5 | 480 |
|
 |  |
480 samples of anode plate

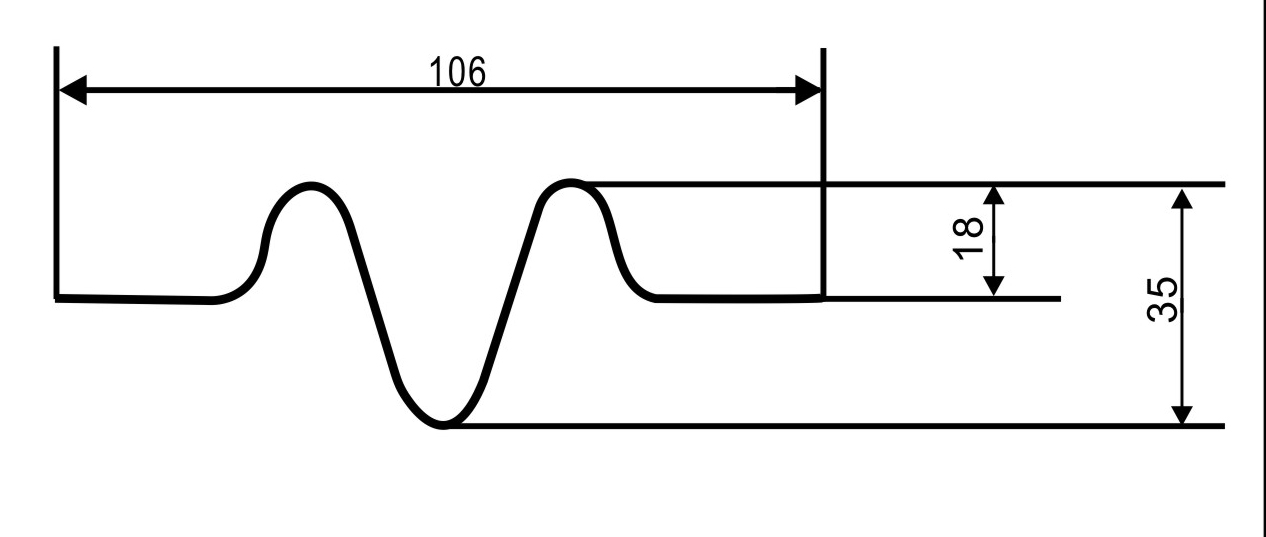

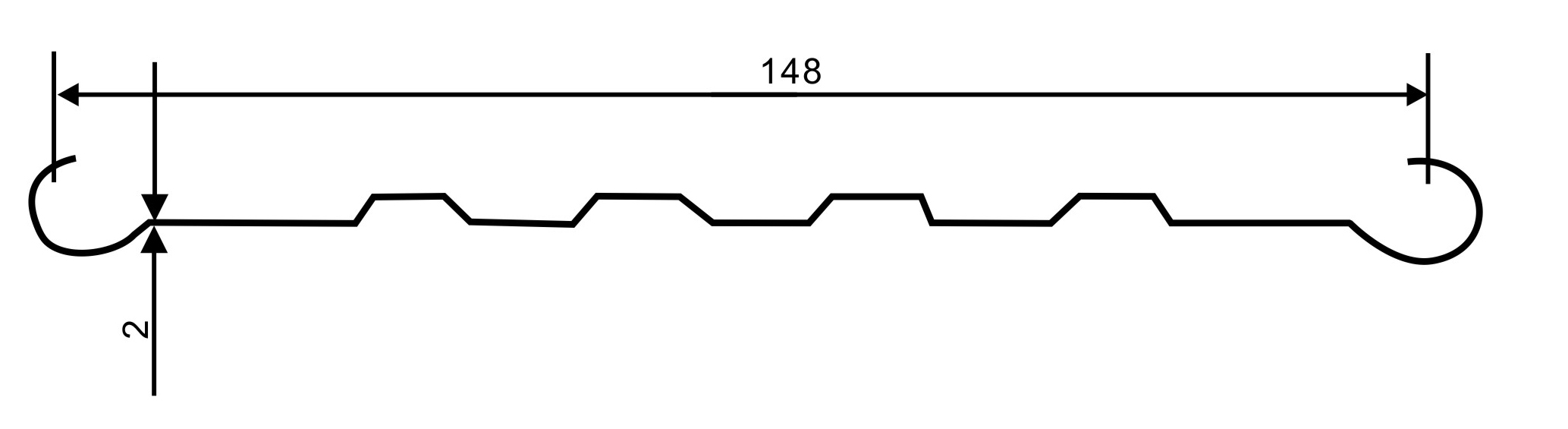

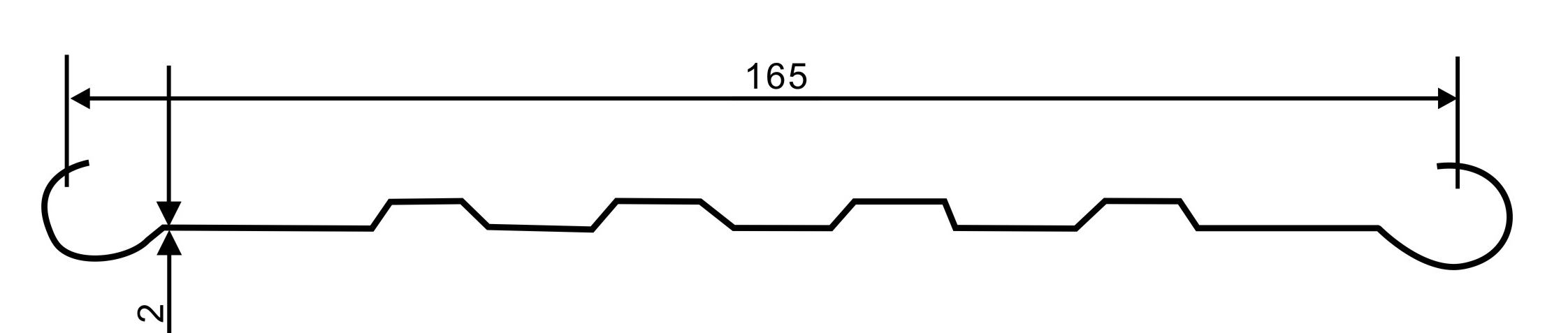

Anode plate sample diagram

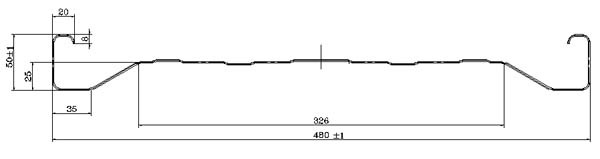

TF 480 anode plate

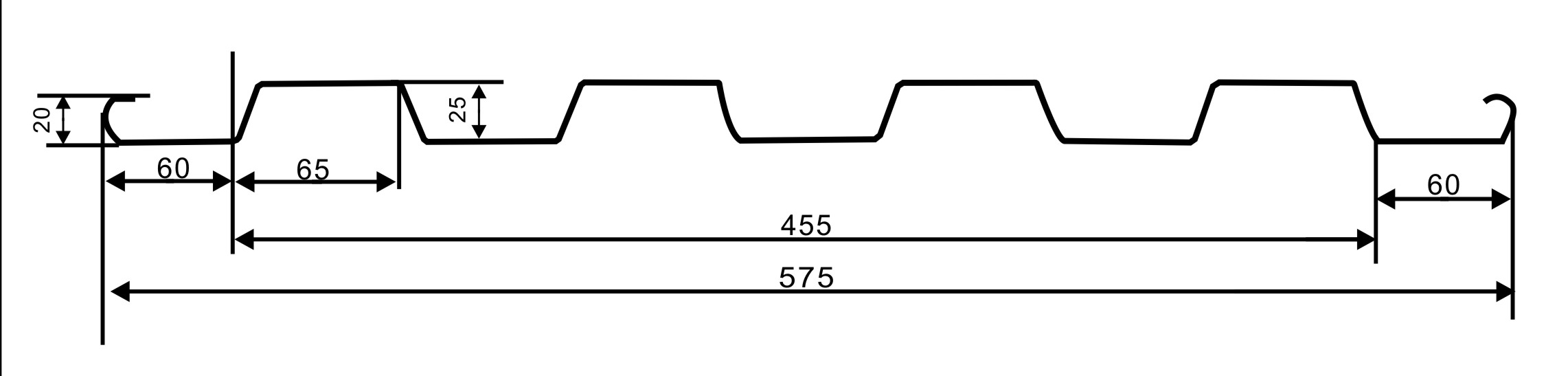

TF 575 anode plate

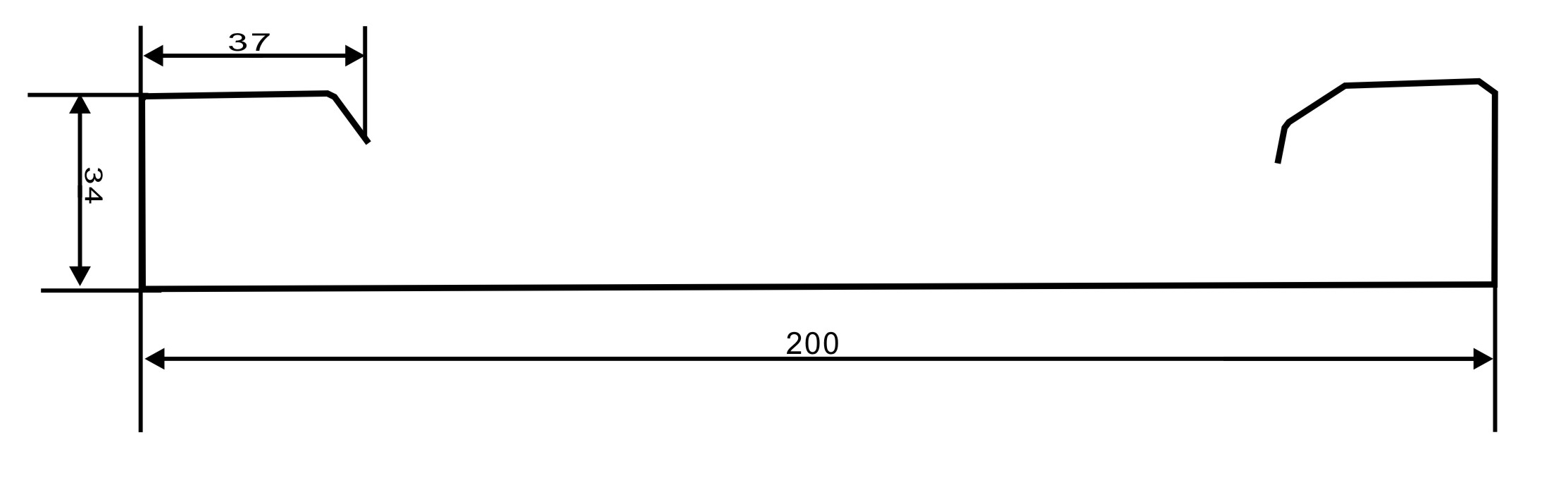

TF the C200 anode
TF cathode rays
The anode plate forming machine production line arrangement
