Open book, slitting and winding line

Category：Others

The hotline：86+373-3553177

Instructions

The series production line is used for the metal plate bending decoiling, slitting and winding into several volumes needed width coil plate. Is suitable for processing and cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and the surface of all kinds of metal plate after plating.

Production line is mainly composed of feeding the small car, uncoiler, leveling machine, slitting, waste edge winding machine, tension machine, winding machine, discharge device, etc.

The whole line adopts PCLS centralized control, human-machine interface, according to a high degree of automation, simple operation and reliable.

Open book, slitting and winding line parameter table

name model	Strip Width（mm）	Thickness （mm）	Slitting cutting	Slitting width precision （mm）	Slitting speed （m/min）	Open book weight （Ton）	备注
TFS-0.5×1300	0.15-0.5	500-1300	20	±0.05	50-120	6	Determine the technical parameters, equipment configuration according to customer demand
TFS-1.5×1300	0.25-1.5	500-1300	30-80	±0.05	50-120	6/15
TFS-2×300	0.25-2	100-300	20-6	±0.05	50-120	2
TFS-2×450	0.25-2	100-450	30-6	±0.05	50-120	3
TFS-2×650	0.25-2	100-650	30-6	±0.05	50-120	5
TFS-2×1300	0.25-2	500-1300	30-12	±0.05	50-160	6/15
TFS-2×1600	0.25-2	500-1600	30-12	±0.05	50-160	6/15
TFS-3×1600	0.35-2	500-1600	30-8	±0.1	50-120	6/15
TFS-4×1600	0.5-4	900-1600	30-6	±0.1	30-80	20
TFS-6×1600	0.6-6	900-1600	20-6	±0.05	30-60	30
TFS-8×2000	2-8	900-2000	10-3	±0.2	20-40	30
TFS-14×2000	4-14	900-2000	4-2	±0.5	8-20	30

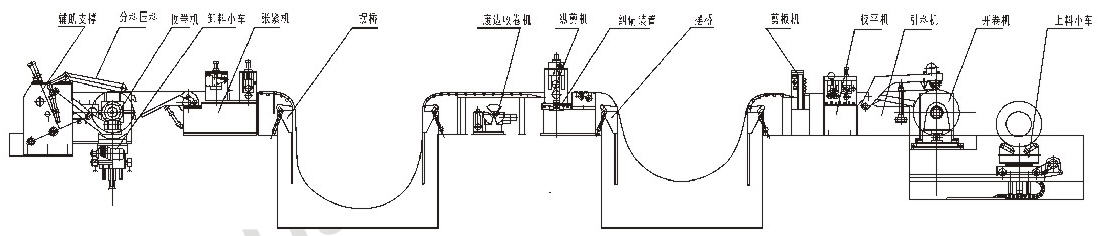

Open book, slitting and winding line layout
