The main technical parameters, the production line

1 rolling material: Q235

2 rolling material thickness: 1.5 2.0 mm

3 rolling material width: about 125 mm

Coil diameter: 4 Φ 508 mm

5 parts length: 2 m/a

6 production lines speed: 0 to 25 m/min (including punching and cutting off)

Second, the production technology and composition

2.1 production process:

Hydraulic open-book leveling feeding - shearing butt - - mechanical punching - (loop) - rolling forming - tracking cut - out of the material

2. 2 production line equipment configuration

1 hydraulic uncoiler a

2 the shear welder

3 leveling servo feed a

4 a mechanical punch

5 a piercing die

Six roller pressure molding machine

7 track cut off one

8 discharging a

9 a set of hydraulic system

A set of 10 electric control system

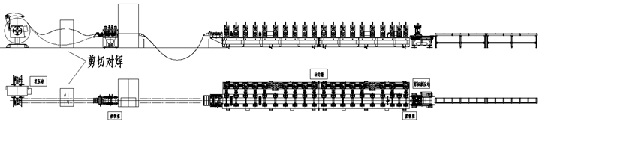

2.3 production process diagram

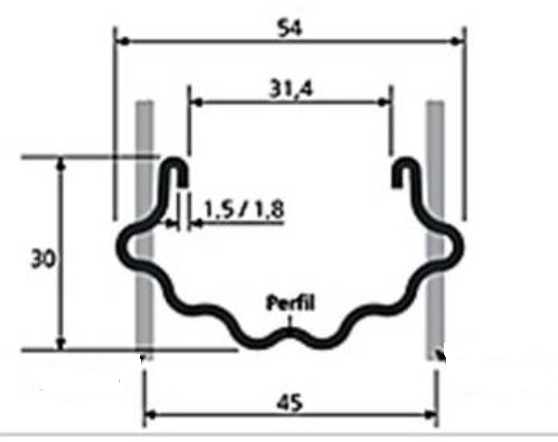

Vineyards column section 2.4
