We manufacture of automobile glass elevator guide rail cold bending production line, mainly used for automobile glass lifting assembly. Production line has radian is adjustable, a molding, etc.

1, production lines, main technical parameters

? applicable plank: Q235 applicable thickness: 1.0 1.5 mm

? material width: 69 mm coil diameter: 508 mm Φ

? parts length: 400-1000 - mm machine speed: 0 to 10 m/min

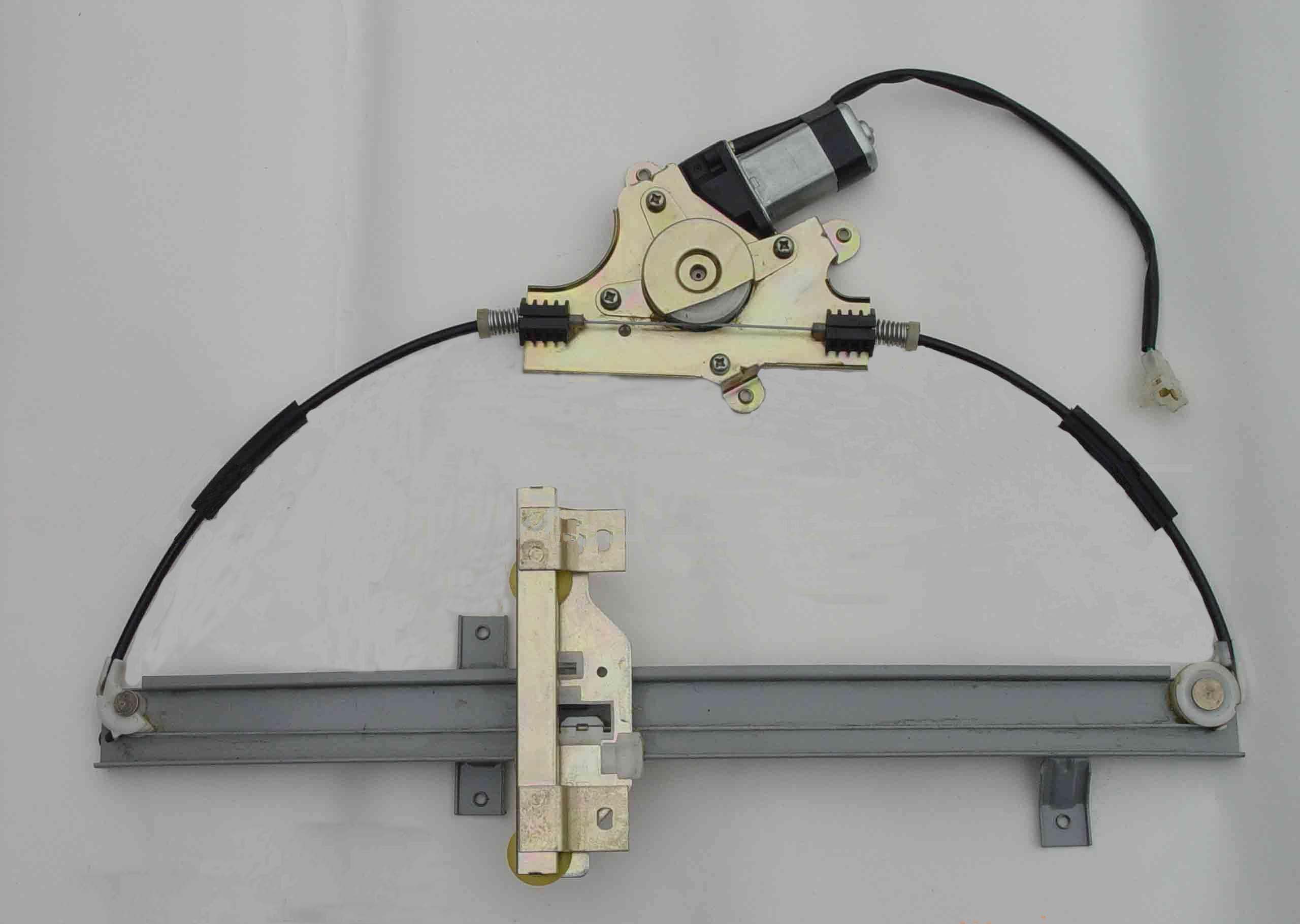

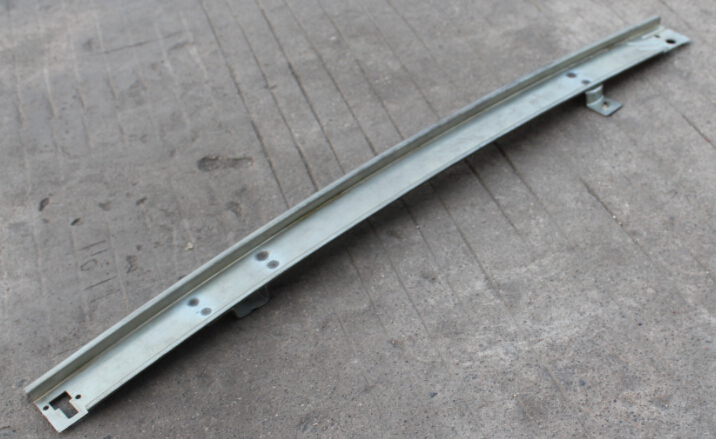

Auto glass elevator guide rails

2, production process:

Open book - are - guide roller pressure molding (roller) - punching - arc - cut - out of the material

Equipment:

1), a 2) decoiler, guide device is one

3), molding machine, a 4), a set of punching machine

5), cutting machine, a 6), a set of electric control system

7), a set of hydraulic system

3, areas of application:

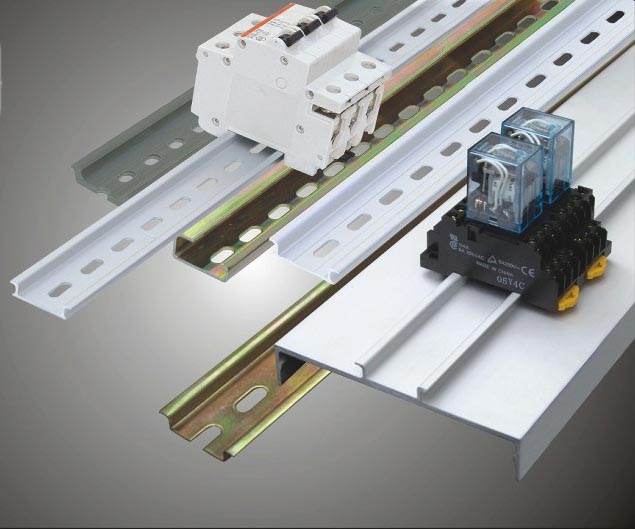

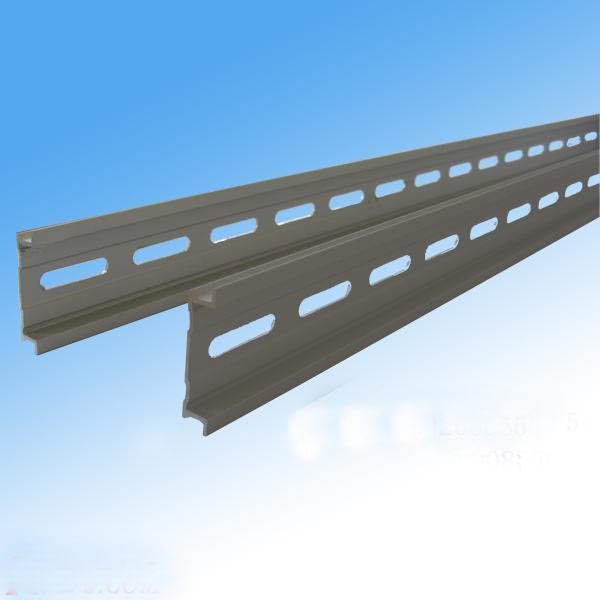

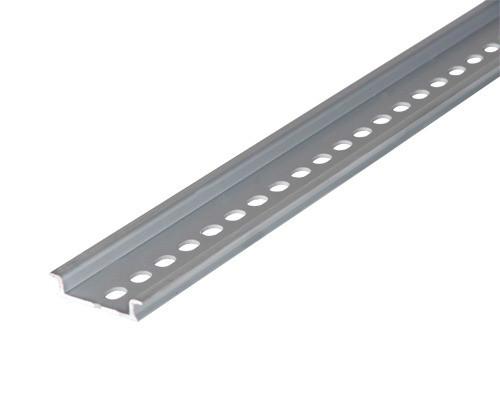

Auto glass elevator guide rail assembly                     All kinds of electric rail


            Metal guide                                           Drawer side rail

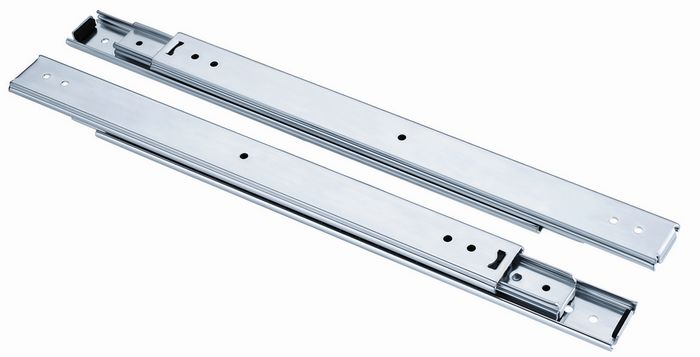

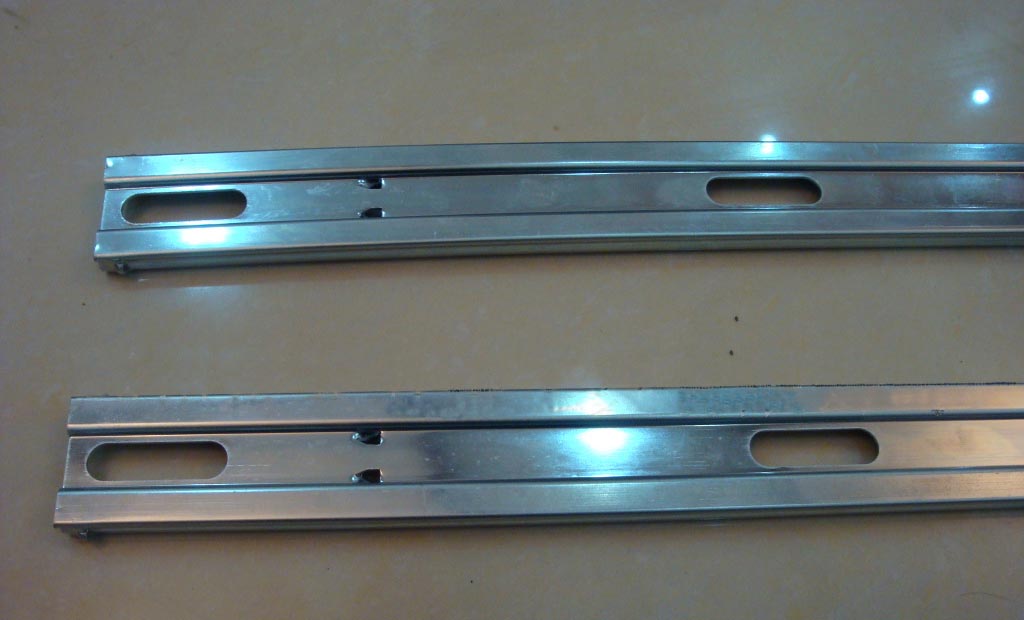

           Drawer slides                                    Metal slides
