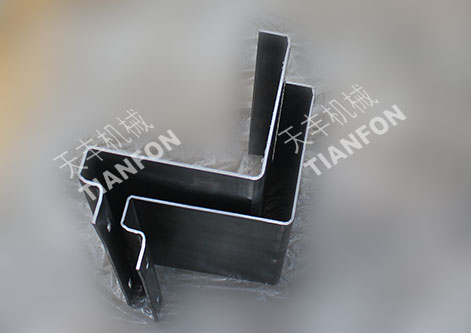

Three-dimensional garage cold bending side Liang Lizhu production line, mainly used for beam and plate production, parking equipment production efficiency is high, forming good consistency and plate type precision, high bearing capacity, easy installation, good lap effect is widely used in three-dimensional garage.

Equipment:

Uncoiler leveling feeding, hydraulic punching - molding - alignment - cut - discharging

A, production lines, main technical parameters:

1 - for steel plate material: Q235

2 - for steel plate thickness: 4.0 MM

3 - to adapt to the steel plate width: 405 mm

Rolling speed: 4-5-6 m/min

Second, the uncoiler

Used to support the steel coil and steel coil, by screw up tight material wall; Simple structure, convenient operation, no power uncoiling.

Three, leveling machine feeding

Used for steel strip levelling. Leveling machine with shovel head unit (hydraulic), pressure straight head device, pinch roll, leveling roller, the pinch roll can be adjusted separately, servo motor drive, can pull material

Four, molding machine

Is mainly composed of feed platform, frame, roller, roller, transmission system, protection. The front of the fuselage installation guide is the platform for positioning of feeding, sheet, guarantee the accuracy of the feeding position.

Five, the shearing machine

Stop shear, hydraulic power cut off.

Application: apply to the three-dimensional garage frame, plate forming

The unit performance: type CNC automatic punching forming, cutting, industrial PLC control.

Three-dimensional garage cold bending edge Liang Lizhu production line

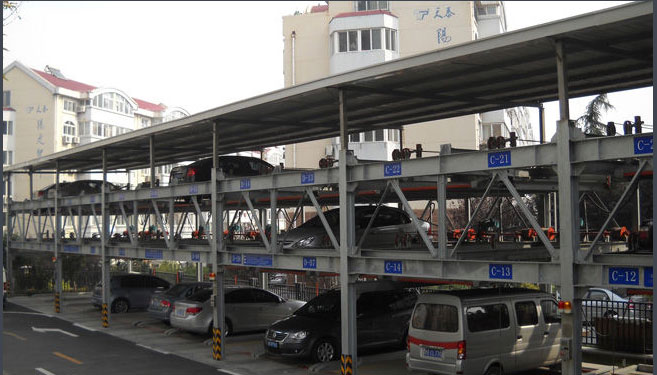

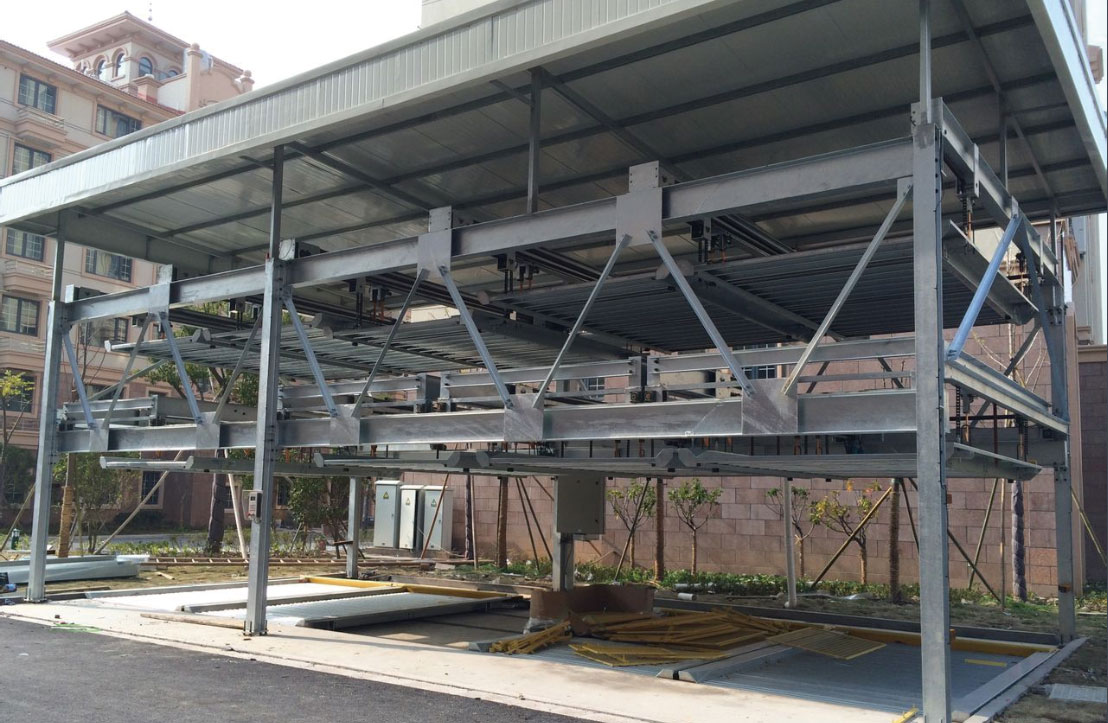

An engineering example
