A, equipment composition and the brief introduction:

TF006 sound insulation board production line is mainly composed of decoiler, servo feeding, punching machine, forming machine, end cutting & folding machine, turnover, conveyor, protective system, centralized lubrication system, hydraulic system and electrical control system components, can be set up and in the production of different punch combination plate type, equipment operation is simple, widely used.

TF sound insulation plate cold bending production line open-book section

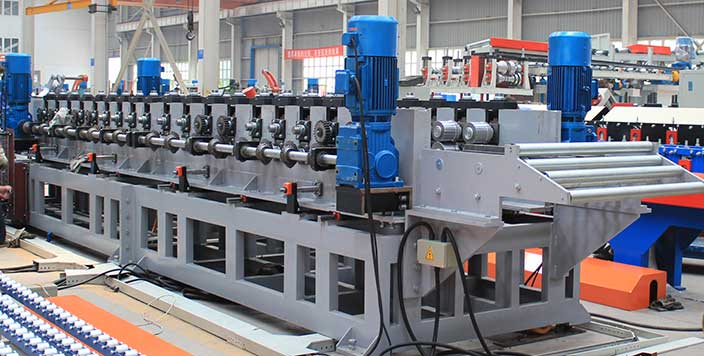

TF sound insulation plate cold bending forming production line

Second, the main technical parameters:

The thickness of 1:0.8 to 1.5 mm

2 width: 1-2 meters

3 speed: 8 to 12 m/min

4 cutter material: Cr12

5 the roller material: 40 cr, quenching HRC58-62, hard chrome plated surface, high hardness, rust

Three, the structure of the machine:

Description: 1. The structure consists of frame, roll, roll, power transmission system, protective gear, etc.

2. The frame adopts h-beam base, welding fuselage side panel form, side panel surrounding the machining including pick on h-beam.

3. The frame to deal with the stress, deformation. The sprocket shaft end installation, the upper and lower axis distance is adjustable.

4. Gear motor through the chain drive machine under the roller steel strip rolling. A positioning installation, ensure the accuracy of production parts;

5. Gear motor drive, chain transmission, frequency control of motor speed, roller and the carbon steel.

6. The host structure consists of two connection parts by the positioning pin nut fastening, each under the fuselage with the horizontal adjustments bolt.

Roll mould molding process by a professional trained and experienced senior professionals with international advanced German professional cold bending software COPRA design, review, and analyzed by FEA, roll adopts the composite structure, speed difference and forming resistance is small, can guarantee the forming size accurate, stable.

Four, scope of application:

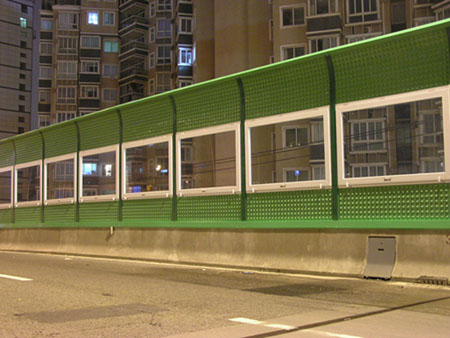

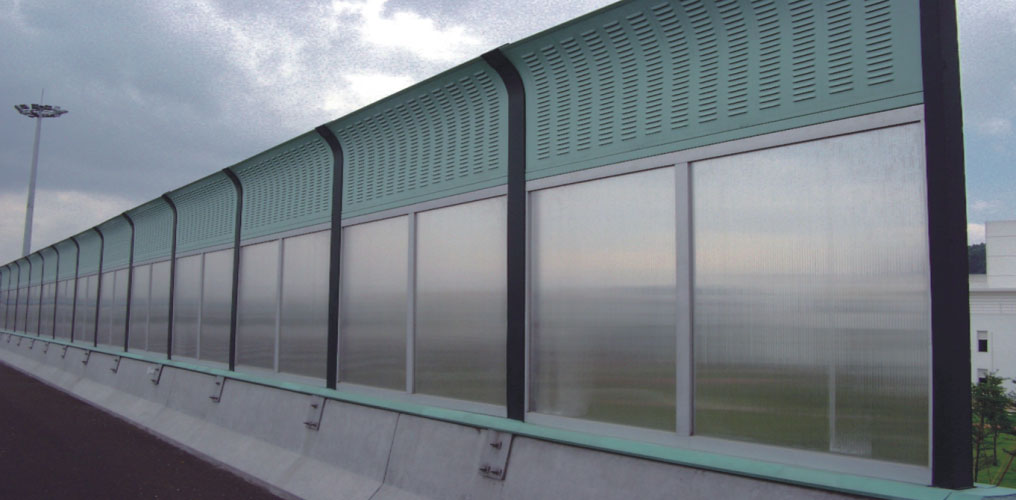

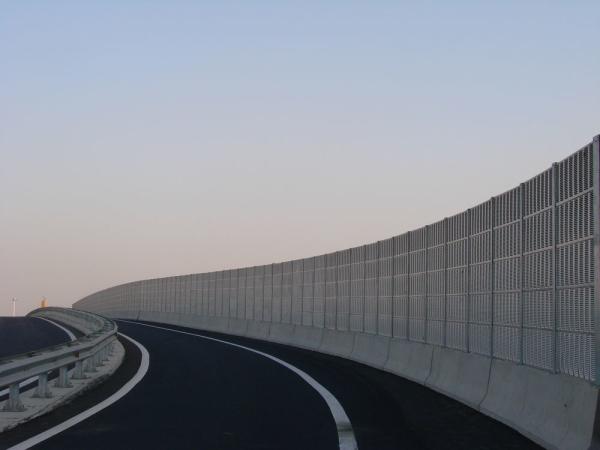

Widely used in road, elevated, highway, rail transportation, railway, residential area, etc.
