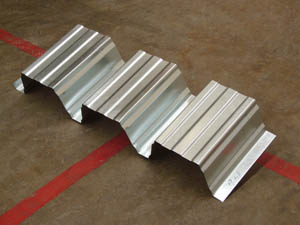

We manufacture LouCheng sheet molding equipment, mainly for the production of steel structure engineering use LouCheng board. Use galvanized sheet rolled pressed steel plate cold bending forming, rolling into LouCheng plate after its cross section into class with v-shaped, u-shaped and ladder type or a combination of these. Mainly used to make composite floor slab or concrete floor permanent template. Products with light weight, high strength, bearing great, good vibration resistance characteristics, are widely used in many areas of high-rise steel structure building.

Raw material thickness: 0.8 ~ 1.2 mm

Raw material width: 660 mm to 914 mm, 1000 mm to 1250 mm to 1300 mm

Effective width: 300 mm to 600 mm to 880 mm

Main use: floor structural steel plate

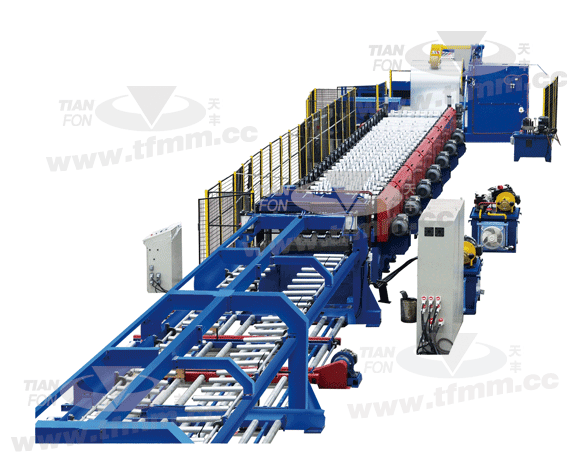

Steel structure with LouCheng plate cold bending forming production line

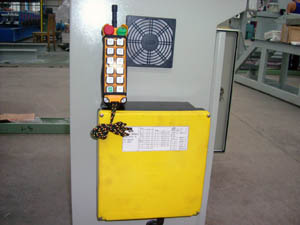

The building plate production line production speed of 25 meters/minute, can produce a variety of plate type increase forming unit, production line can be remote control, with the overall protection, in line with the eu safety standard, passed the CE certification.

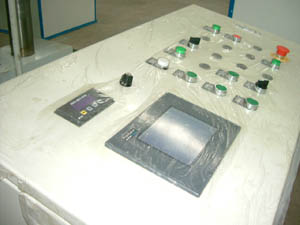

LouCheng plate cold bending production line by feeding the small car, uncoiler, into the material is cut, roll forming machine, forming, automatic palletizing, hydraulic system, electric control system of production line speed: 40 ~ 60 m/min

LouCheng plate cold bending production line, the optional model parameter list

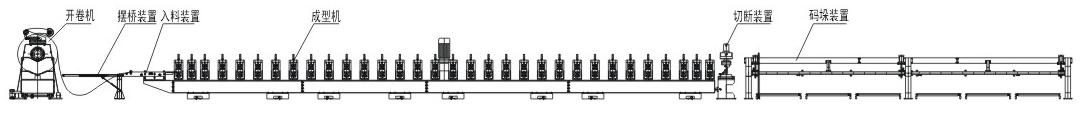

LouCheng plate cold bending production line arrangement
