The light steel keel cold bending device is mainly composed of uncoiling device, guide platform, roller bend forming machine, cutting machine, discharge frame, hydraulic system and electrical control system components. With reasonable structure, simple operation, safe and reliable, short production process flow, product widely used, etc.

One, the main technical parameters

1. Board charts (see figure 1)

2. Linear velocity: 12 m/min.

3. The molding time: 10 way;

4. Production capacity: 15 kw;

5. The main gear motor power: 5.5 KW.

6. The oil pump motor of the hydraulic pressure station power 5.5 KW.

7. The production line appearance size: 12150 mm * 1750 mm * 1750 mm

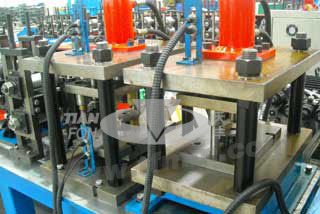

     Light steel keel cold bending feeding equipment               Light steel keel production equipment

                       C Light steel keel                      Light steel keel with stretching hole
