Product introduction

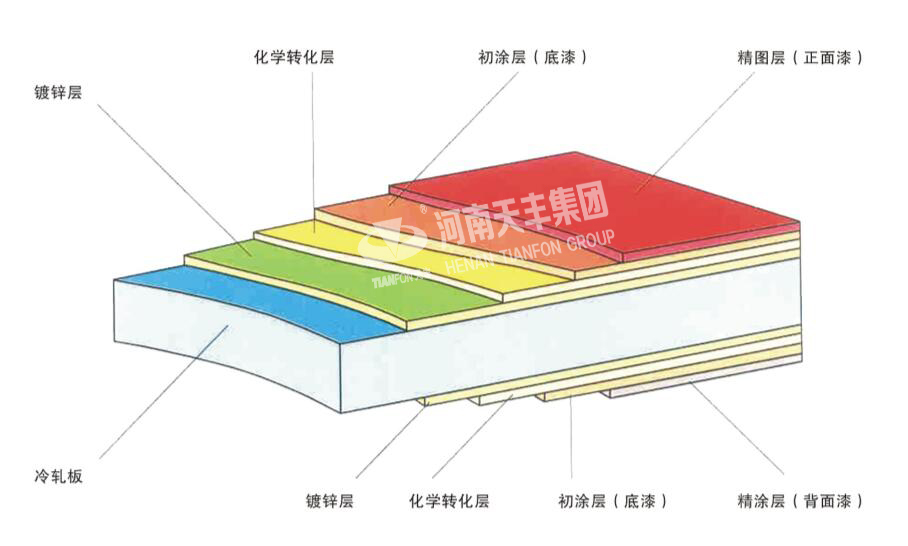

Width, the basic structure of the (top and bottom surface of the coated twice, baking secondary)

     Color steel plate, commonly known as choi steel, is a high-quality galvanized steel or aluminium zinc steel plate as the base board, through the transformation of surface degreasing, phosphating, chromate treatment, after coated with organic coating made by baking, with light weight, high strength, bright colors, good durability and other characteristics. Widely used in construction, household appliances, decoration, automobile and other fields.

彩钢板

The largest supplier of plating board in the central and western regions

We'll offer you the first-class, more durable, more beautiful products

We provide you with the national well-known steel color steel plate production, first-class equipment and production technology, ensures that we can give you provide different specifications, different thickness and different coating and coating of high quality color steel plate, polyester color steel plate (PE)、High resistance to polyester color steel plate (HDP)、Silicone modified polyester color steel plate, (SMP)、Fluorocarbon color steel plate (PVDF)Antibacterial color plate, anti-static self-cleaning color plate, color steel plate, electrical home appliances color steel plate, aluminum zinc plating color plate, aluminum zinc plated color steel plate, printing color steel plate, embossed color steel plate



We can improve your efficiency, reduce the cost of you

We offer from each production process quality control of products, ensure our products of adhesion, flexibility, weather resistance, processability and surface quality of continuous consistency, can eliminate scrap, repair cost due to quality problems and provide you with perfect product solutions and technical services, after-sales service, solve your worries.



1




Project Introduce
The base plate Hot dip galvanized steel coil, aluminum zinc plating steel rolls
Zinc layer thickness The galvanized layer : 60-275g/m2, Aluminum and zinc plating layer : 60-180g/m2
The thickness of the substrate 0.21-1.55mm
breadth600~1250mm
bore∮508mm,∮610mm
Steel grade DX51D, DX52D, DX53D, S220GD, S250GD, SGCC TDC51D
Quality standard EN10142, EN10326, EN10169, JIS3302, ASTMA755M, GB/T12754
The types of paint Polyester (PE), poly (vinylidene fluoride) (PVDF), high durability polyester (HDP), silicone modified polyester (SMP)
The coating structure 2/2, 2/1
Positive coating 20-25 micron
Back coating7-12 micron
Surface gloss 35-65 (+/- 5o)
color RR, RAL
Single volume weight 1-8 Metric tons
The packing way Vertical packaging, horizontal packaging
