My company development and production of car parking solid carport frame, bottom line, to fill the gaps in the industry, greatly improve the work efficiency, reduce processing costs by more than 80%, has been widely used, and get the user high evaluation. Parking equipment frame, floor production line, mainly used for parking equipment edge plate and bottom plate production, high production efficiency, forming good consistency and plate type precision, high bearing capacity, easy installation, good lap effect is widely used in three-dimensional garage.

1 cold bending production line, main technical parameters

Applicable plank: Q235

The range of the thickness: 2.0 mm

To adapt to the plate width: around 450 mm

Linear speed: 10 m/min

2 production process:

Uncoiling, leveling material - punching - molding - cut - out the material

3 scope of application:

Solid carport frame, plate forming

4 unit performance:

All type of CNC automatic punching forming, cutting, industrial PLC control.

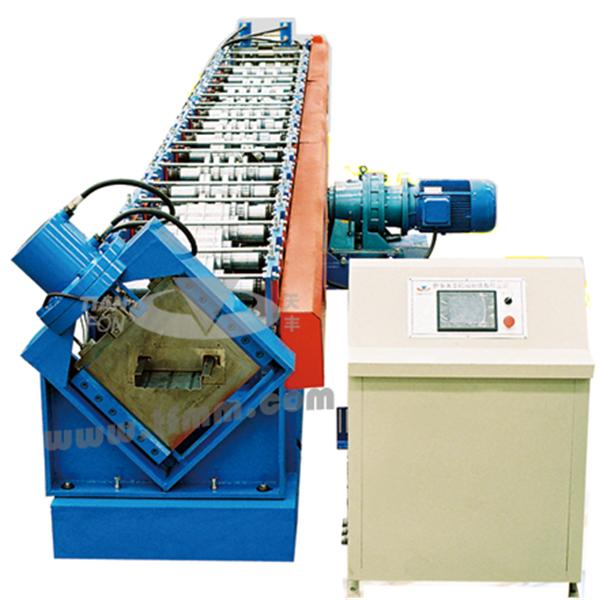

Three-dimensional garage wave plate equipment

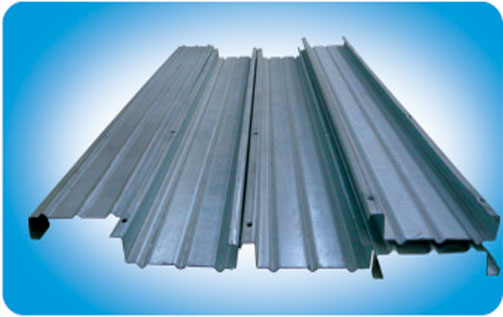

Three-dimensional garage wave plate

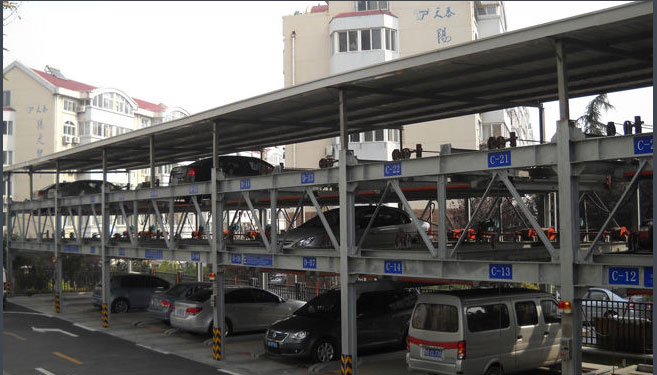

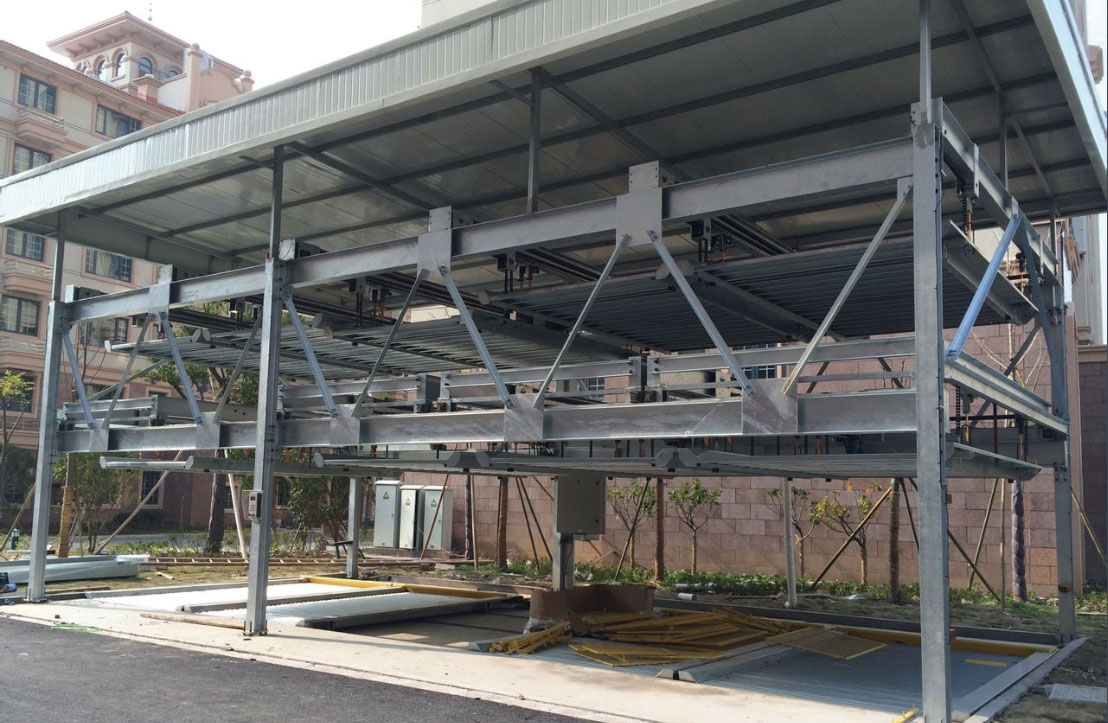

An engineering example
