A, cold bending production line profile:

TF119.5 and TF122.5 door plank production line is a collection of decoiling, into the material, forming, cutting, discharging into a high degree of automation of the production line. It produced by rolling steel has good mechanical properties such as compressive strength, bending, widely used in industry, civil construction, is a new type of building materials.

This production line is mainly composed of passive uncoiler, into the material is, guide roller pressure forming machine, cutting machine, and electric control parts, with reasonable structure, convenient operation, safe and reliable, short process flow, the characteristics of energy saving material.

Second, the book door cold bending line parameters:

The thickness (mm) : 0.8 ~ 1.5

171/190 plate width (mm)

Speed (m/min) 10

Line shape (length * width * height: mm) 12044 * 1369 * 1115

Uncoiler bearing (T) : 2

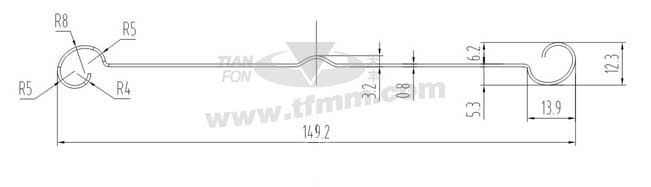

Three, shutter type steel plate type diagram:

Shutter type steel plate type

Shutter type steel plate type

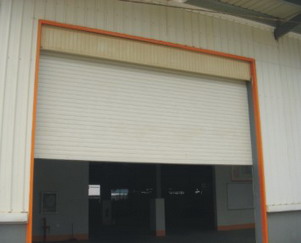

Four, shutter steel engineering examples:
