Uncoiling, leveling, cutting, palletizing production line

Category：Others

Online advice Order

The hotline：86+373-3553177

Instructions

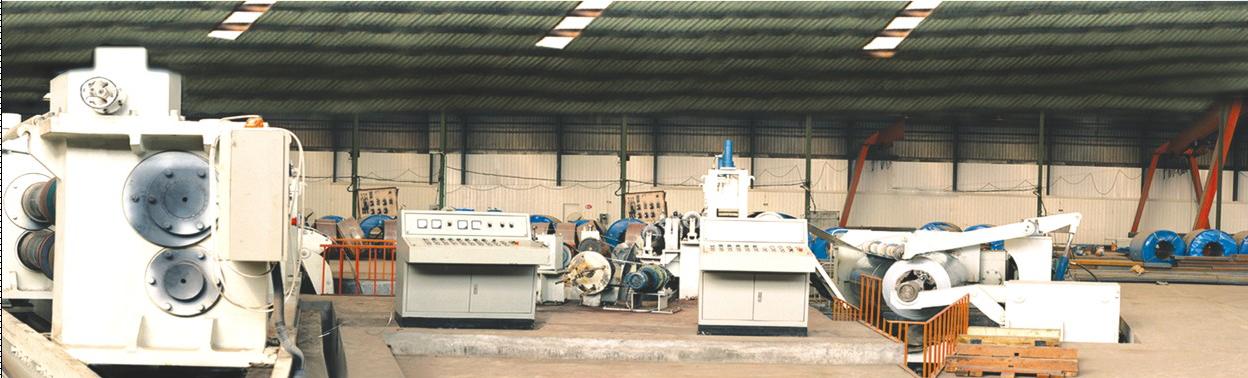

Uncoiler,leveler,cut-to length, stacker production line

Product introduction ：

The series production line is used for the metal plate after uncoiling, leveling, scale cutting into the required length of flat sheet and stacking. Used in processing and cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and the surface of all kinds of metal plate after plating.

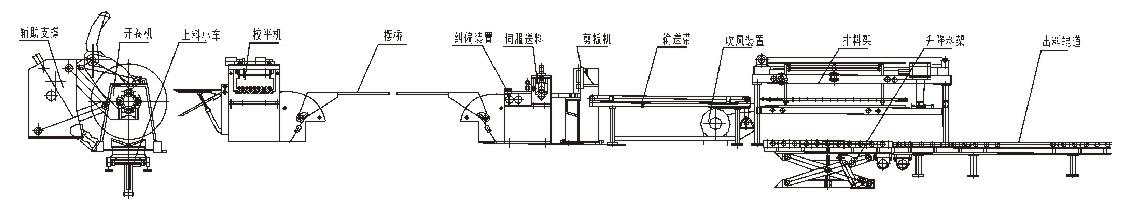

Production line is mainly composed of feeding the small car, uncoiler, leveling machine, conveying mechanism, cutting board conveyer, piling device, etc.

The whole line adopts PLC central control, numerical control length measurement and control, human-machine interface, according to a high degree of automation, simple operation and reliable

Name Model	Thickness	Strip Width	Cutting precision（mm）	Leveling precision （mm/m2）	Cutting speed （m/min）	Open book weight （Ton）	Remarks
TFC-0.5×1300	0.15-0.5	500-1300	±0.3	1-2	30-60	6/15	Cutting velocity, the vibration is 2000 mm long shall prevail. Determine the technical parameters, equipment configuration according to customer demand.
TFC-1.5×1300	0.35-1.5	500-1300	±0.3	1-2	30-60	6/15
TFC-2×600	0.35-2	150-650	±0.3	1-2	30-60	5
TFC-2×1300	0.35-2	500-1300	±0.3	1-2	30-60	6/15
TFC-2×1600	0.35-2	500-1600	±0.3	1-2	30-20	15
TFC-2×1850	0.50-2	900-1850	±0.5	1-2	25-50	20
TFC-2×1600	0.50-3	900-1600	±0.5	1-2	25-50	15
TFC-3×1850	0.50-3	900-1850	±0.5	1-2	25-50	20
TFC-6×2000	1-6	900-2000	±1	2-3	10-30	20
TFC-8×2000	2-8	900-2000	±1	2-3	10-25	20
TFC-12×2000	3-12	900-2000	±1.5	2-4	10-25	20
TFC-16×2000	4-16	900-2000	±2	2-4	6-20	30
TFC-20×2000	6-20	900-2000	±2	2-4	6-16	30
