产品介绍：

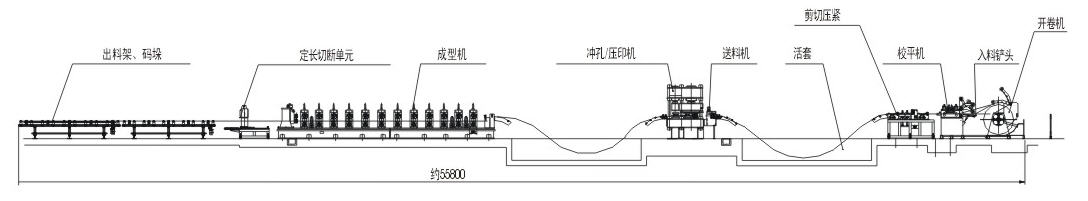

轻轨、地铁导轨不锈钢带冷弯生产线由开卷机、入料导正、校平机、切头机（对焊）、送料机、冲孔机、压印机、辊压成型机、成型剪、出料架、液压系统、电气控制系统组成，生产线速度：3-6m/min。
使用范围：
该冷弯设备生产的不锈钢导轨，可广范应用于地铁、轻轨导电用导轨，冲孔部分可用于安装孔及定位孔用。
整条生产线稳定性好、自动化程度高，受到客户的好评。
轻轨、地铁导轨不锈钢带冷弯生产线技术参数：
适用板材 不锈钢（X6Cr17）Rm=450Mpa Rpo≥280Mpa
适用板厚 6mm
过料宽度 98±0.2mm
卷料内径 ￠508mm
成品长度 15.2m/18.2m
定长细度 ±2mm
线速度 3-6m/min
电 源 380±10%；50Hz
气 源 压力：≥0.6Mpa
生产线总功率 约160KW
 |  |
